China Blue (CG22-HD)

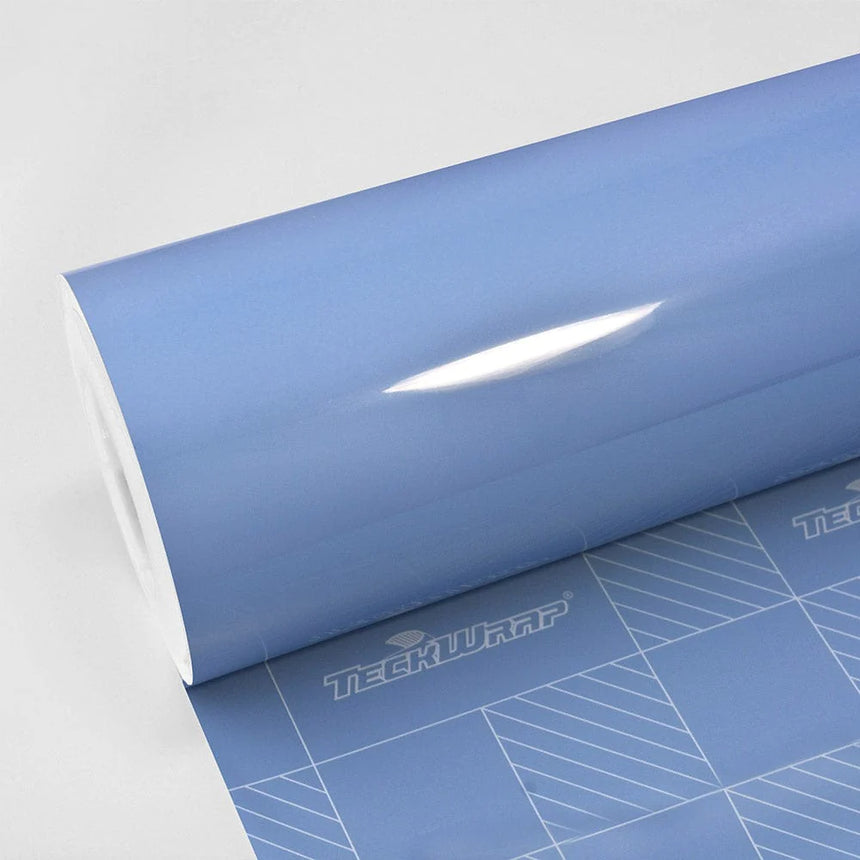

TeckWrap offers new gloss HD colors that give your vehicle a solid and shiny finish. Smooth one without any orange peel. The material is stretchable, and one can easily wrap every edge and recessed area. And the adhesive is safe without giving you any trouble when uninstalling. The film has a PET protective layer, which helps avoid scratches during the installation process (should be peeled off before heating), and a plastic liner makes the film's surface more glossy and reflective.
The thickness of the film(um): 110
The thickness of the release liner(um): 142
Type of film: High-grade polymeric calendered film with air release
Adhesive: Henkel solvent-based acrylic adhesive, ultra-weather-resistant, viscosity 1000~3000cps, thickness 12 μm dry
Release liner: Plastic liner
Storing period: 2 years if stored in +10°С to +20°С, relative humidity 50%, in original package, away from direct sunlight, clean and dry place. Important: the top protective layer should be removed before installation, and the film should be stored without the protective layer to prevent "tunneling."
Durability/Warranty: Datasheet (Click the link)
Release force (N/25mm): Standart: 0.10-0.30, Result:0,18 (23℃,54%H)
Initial Tack(g/25mm): Testing method: GB31125-2014: Standart 800-1500, Result: 1015 (23℃,54%H)
180° Peel strength (N/25mm): Testing Method: GB/T2792-1998: Standart ≥4.9, Result: 8,1 (23℃,54%H)
Adhesion strength: Testing method: GB/T4851-1998, Standart ≥60, Result 70 (No shifting)
Aging (65℃, seven days): Standart - High-temperature release without adhesive residue, result: no adhesive residue
Aging (-65℃, ten days): Standart - Low-temperature release without adhesive residue, result: no adhesive residue
Package: Roll width 152 cm, length 18 or 23m
Application: from +16°С to +18°С, usage from -30°С to +45°С
Tools: Standard squeegee with a soft buffer
Conformability: smooth and medium curved surface
Overlap width: 3-4mm
Post heating: 95 Celcius
The protective cap should be peeled off before installation.
Important note: The screen's images, colors, and finishes are approximate. For the real representation of the product, always check the color swatch. Rolls from the same production LOT number should be used for completing a wrap job, as a slight batch-to-batch variation of color may occur. The film may scratch during the application or a day in and out use. The warranty does not cover the scratching of the film.
